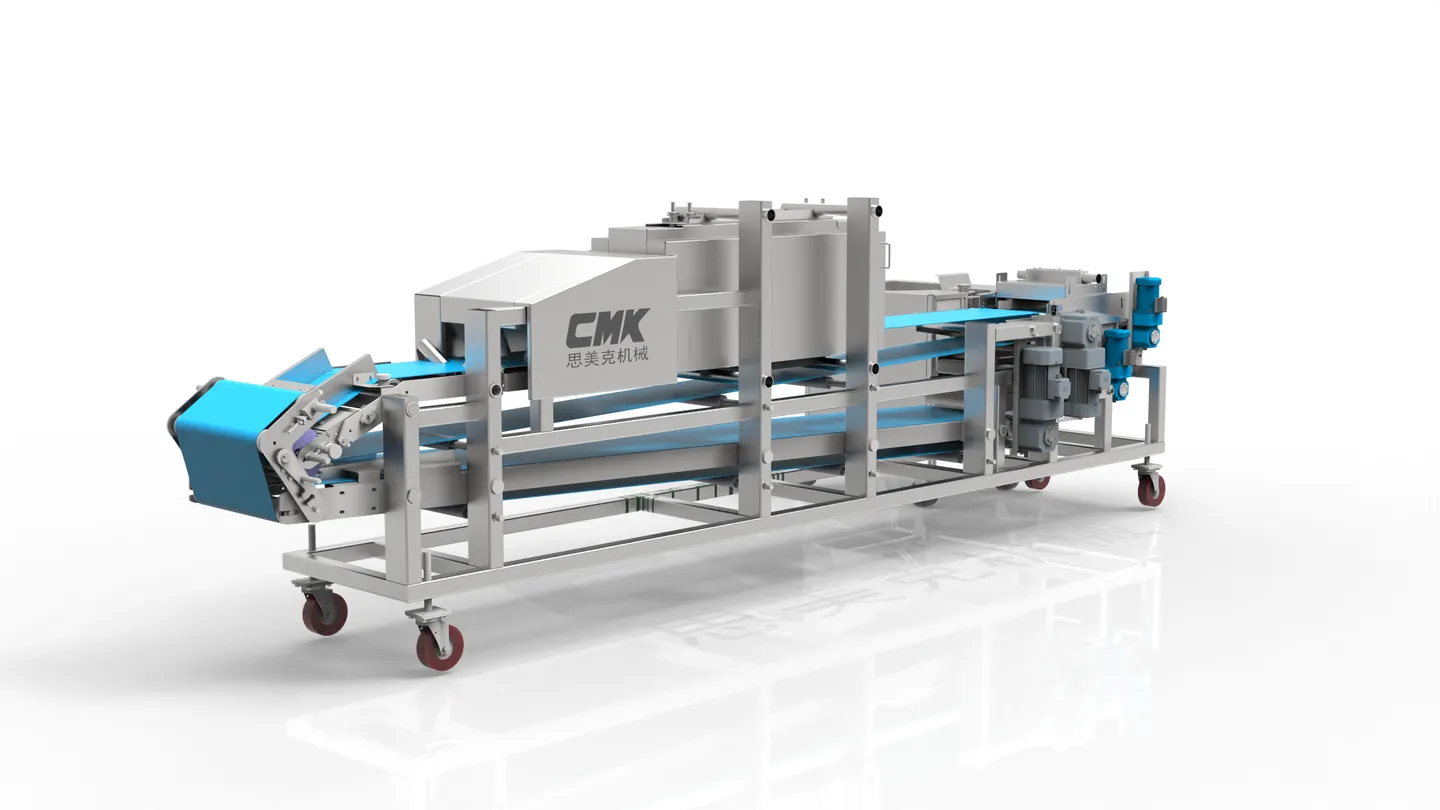

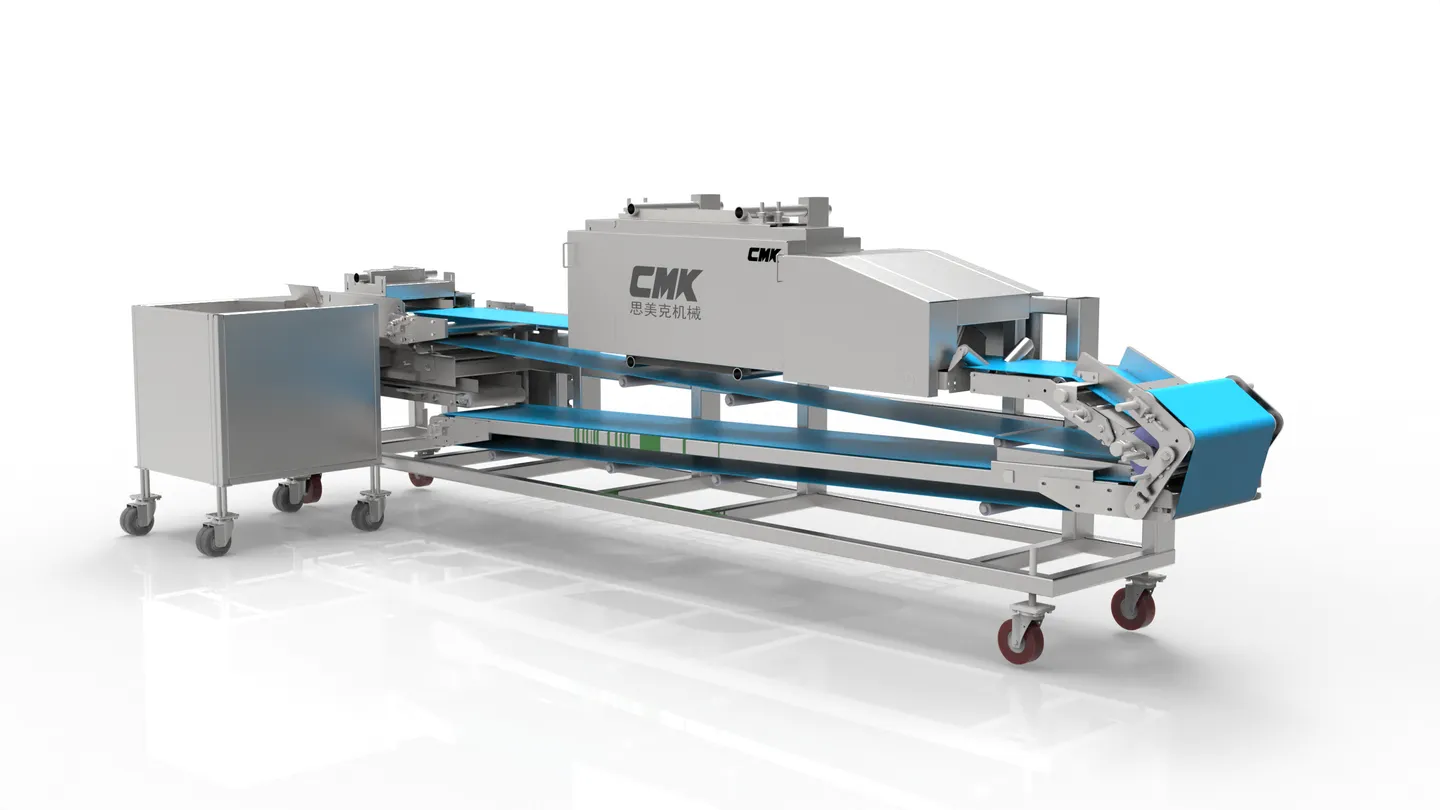

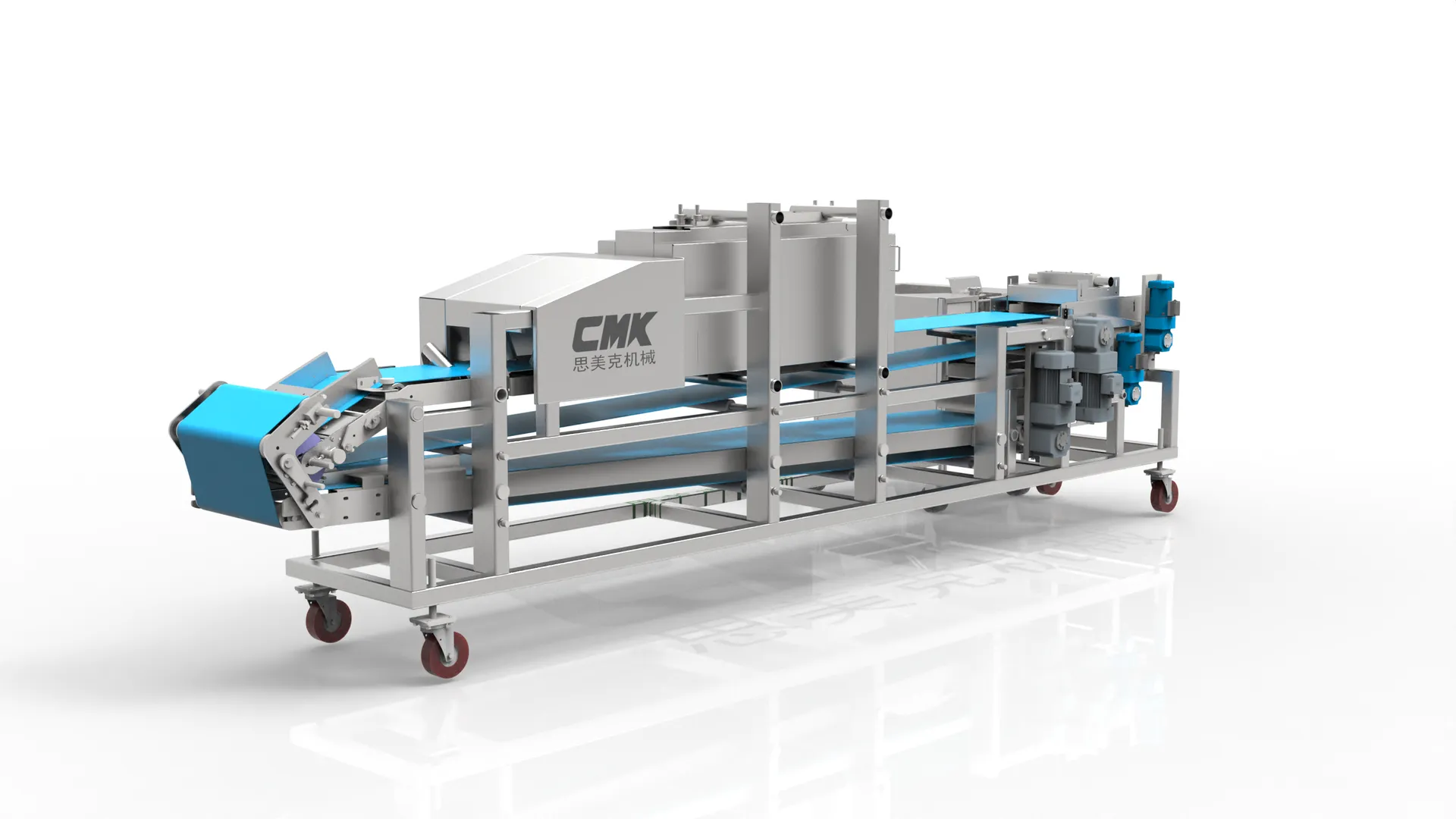

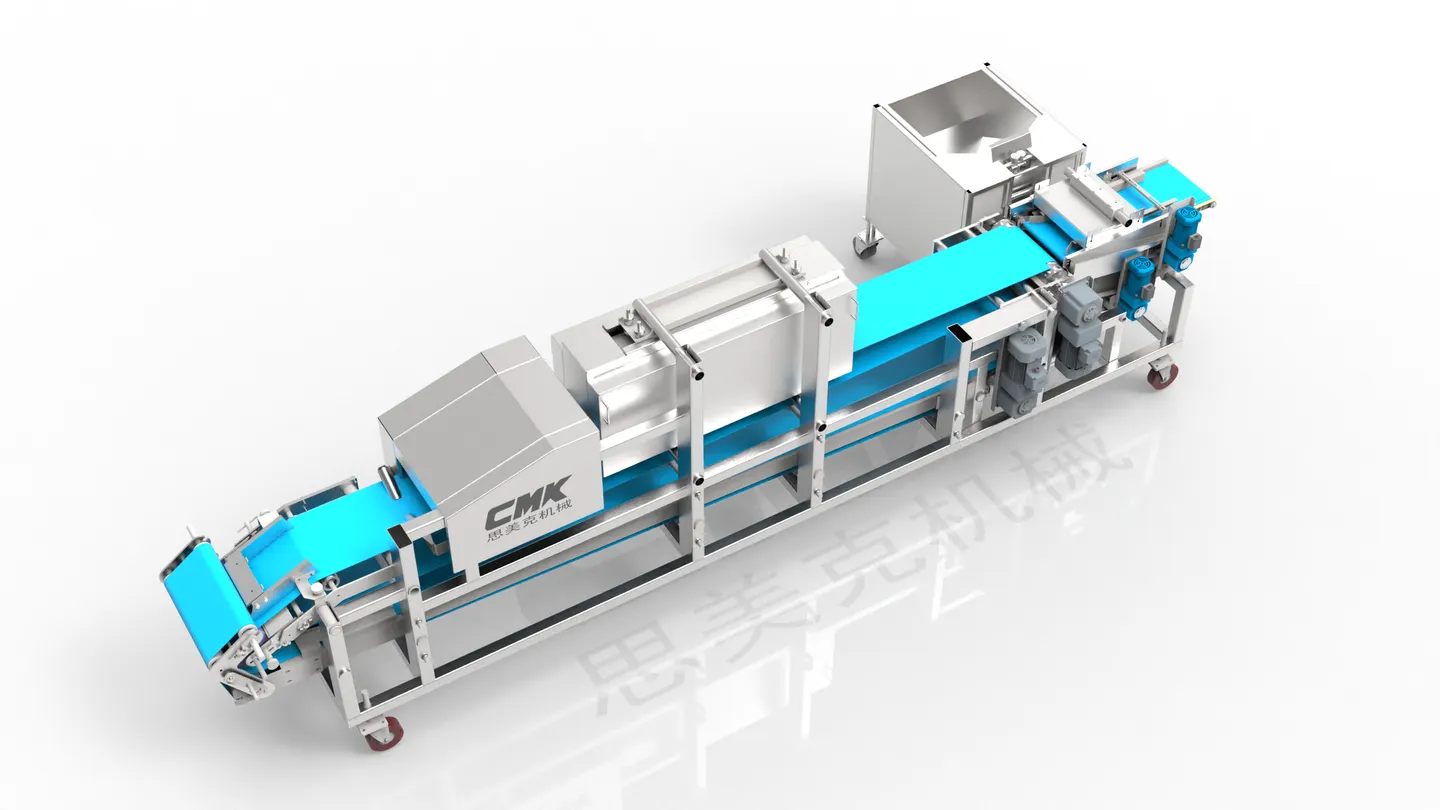

Tunnel Breader

Name: Tunnel Breader
Brand: CMK Machinery
SKU: CMK-SDGF200 / CMK-SDGF400

Wraps and presses fresh breadcrumbs onto strip and stick-shaped products for tight, full coverage on all sides. Works standalone or within a coating line.

Model: CMK-SDGF200 / CMK-SDGF400

Channel width

200 mm

Speed

2–15 m/min (VFD)

Power

4.5 kW

Model

Request a Quote Parameters

1 / 3

Features of Tunnel Breader

✓

Mimics hand-wrapping and pressing for tight breadcrumb coverage.
✓

Designed specifically for fresh breadcrumbs.
✓

Compact footprint fits into battering and breading lines.
✓

Compatible with the Auto Crumb Replenisher.

✓

Covers all four sides evenly for a full coating.
✓

Available in single-channel 200mm and dual-channel 200mm×2 lane configurations.
✓

Exit blower uses a pump-driven SUS304 air knife with adjustable airflow and speed.
✓

Full stainless steel construction supports hygiene and easy cleaning.

About This Machine

The Tunnel Breader is designed for breading strip and stick-shaped food products using fresh breadcrumbs. By mimicking the hand-wrapping and pressing action, the machine achieves uniform all-round coating on all four sides of the product, resulting in a tight, full coating. Available as a standalone unit or as part of a battering & breading production line.

Coating Process

Mimics hand-wrapping and pressing to achieve all-round, even coating on all four sides of strip and stick-shaped products. Ensures uniform coverage and a tight, full breadcrumb coat. Designed specifically for fresh breadcrumbs.

Models & Integration

Available in single-channel (200mm effective width) and dual-channel (200mm×2 lane) configurations for higher throughput. Compact footprint fits into any battering & breading production line. Exit blower uses a pump-driven SUS304 air knife with adjustable airflow and speed. Compatible with the Auto Crumb Replenisher. Full stainless steel construction with easy cleaning.

Applications

Suitable for fresh breadcrumb breading of strip-shaped and stick-shaped food products.

Technical Parameters

Single-channel CMK-SDGF200: 5000 × 900 × 1470mm
Effective Width: 200mm
Conveyor Speed: 2 ~ 15m/min (VFD adjustable)
Inlet Height: 930mm
Outlet Height: 930mm
Power: 4.5kw
Capacity: 3,000 ~ 6,000 pcs/h
Notes: Exit blower: pump-driven SUS304 air knife with adjustable airflow and speed. For use with Crumb Replenisher.

Parameter	Single-channel CMK-SDGF200	Dual-channel CMK-SDGF400
Dimensions (L×W×H)	5000 × 900 × 1470mm	5000 × 1100 × 1470mm
Effective Width	200mm	200mm × 2 rows
Conveyor Speed	2 ~ 15m/min (VFD adjustable)	2 ~ 15m/min (VFD adjustable)
Inlet Height	930mm	930mm
Outlet Height	930mm	930mm
Power	4.5kw	5.5kw
Capacity	3,000 ~ 6,000 pcs/h	6,000 ~ 12,000 pcs/h
Notes	Exit blower: pump-driven SUS304 air knife with adjustable airflow and speed. For use with Crumb Replenisher.	Exit blower: pump-driven SUS304 air knife with adjustable airflow and speed. For use with Crumb Replenisher.
